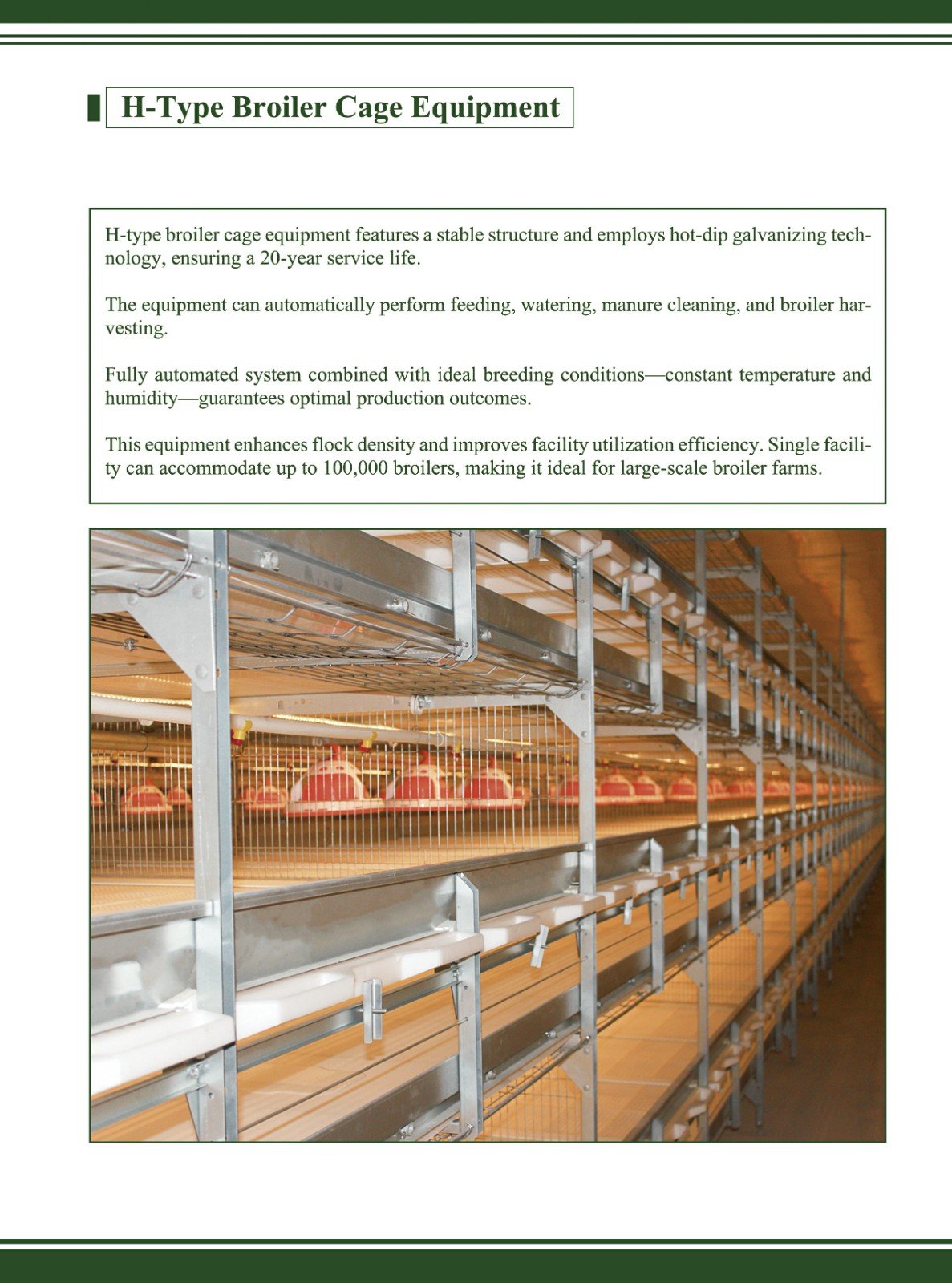

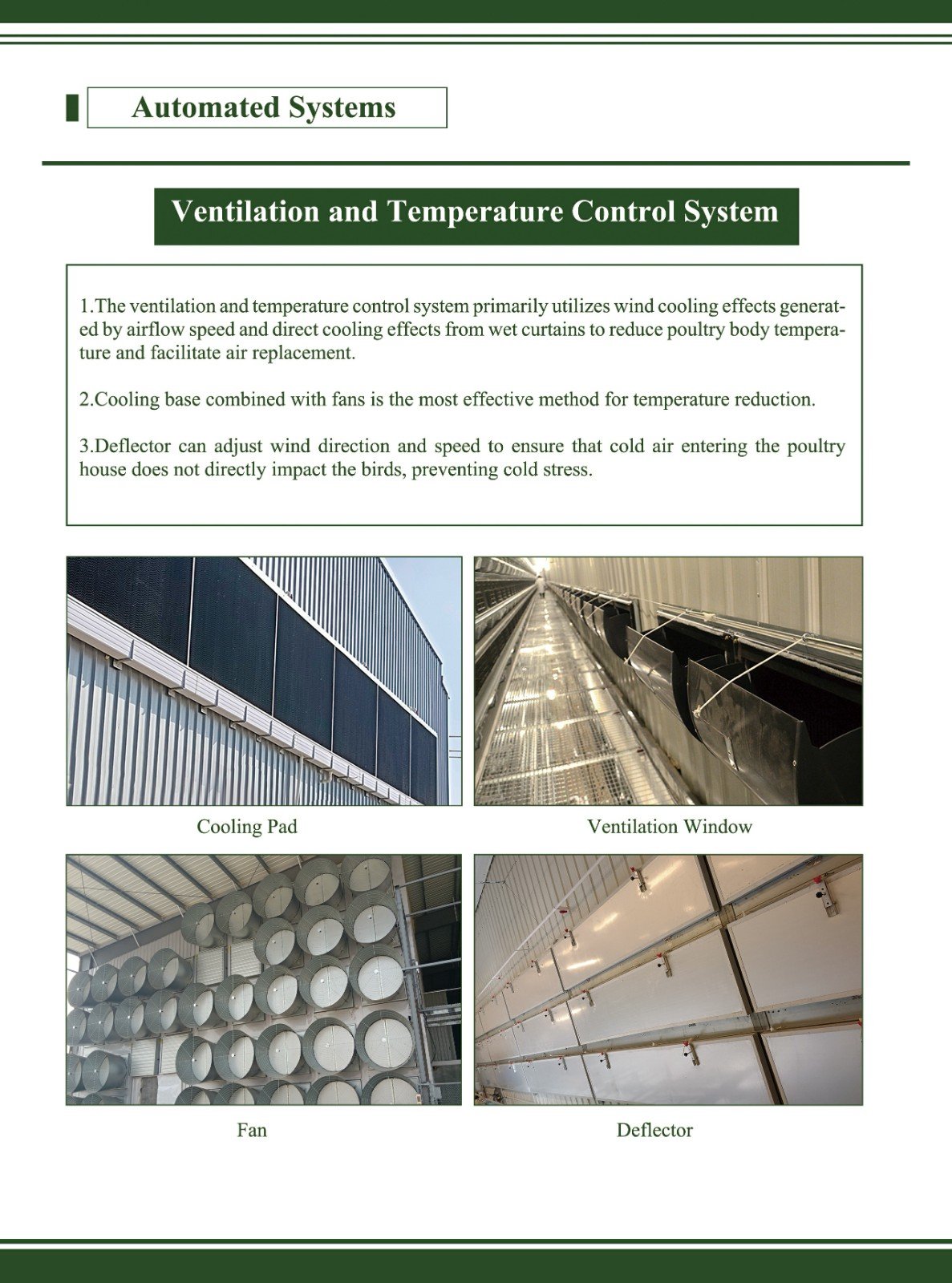

The H-type broiler equipment: H-shaped construction optimizing space. Automated feeding for accurate nutrition. Intelligent climate control for suitable temperature and humidity. Efficient ventilation to keep air fresh. Sturdy and comfortable housing promoting growth. Hygienic waste management system. Easy operation and maintenance. Overall, it effectively supports healthy and rapid broiler growth.
1.Cell size:Length 3000mm,width 1820mm,height 450 mm. Raising areas is 5.46㎡.

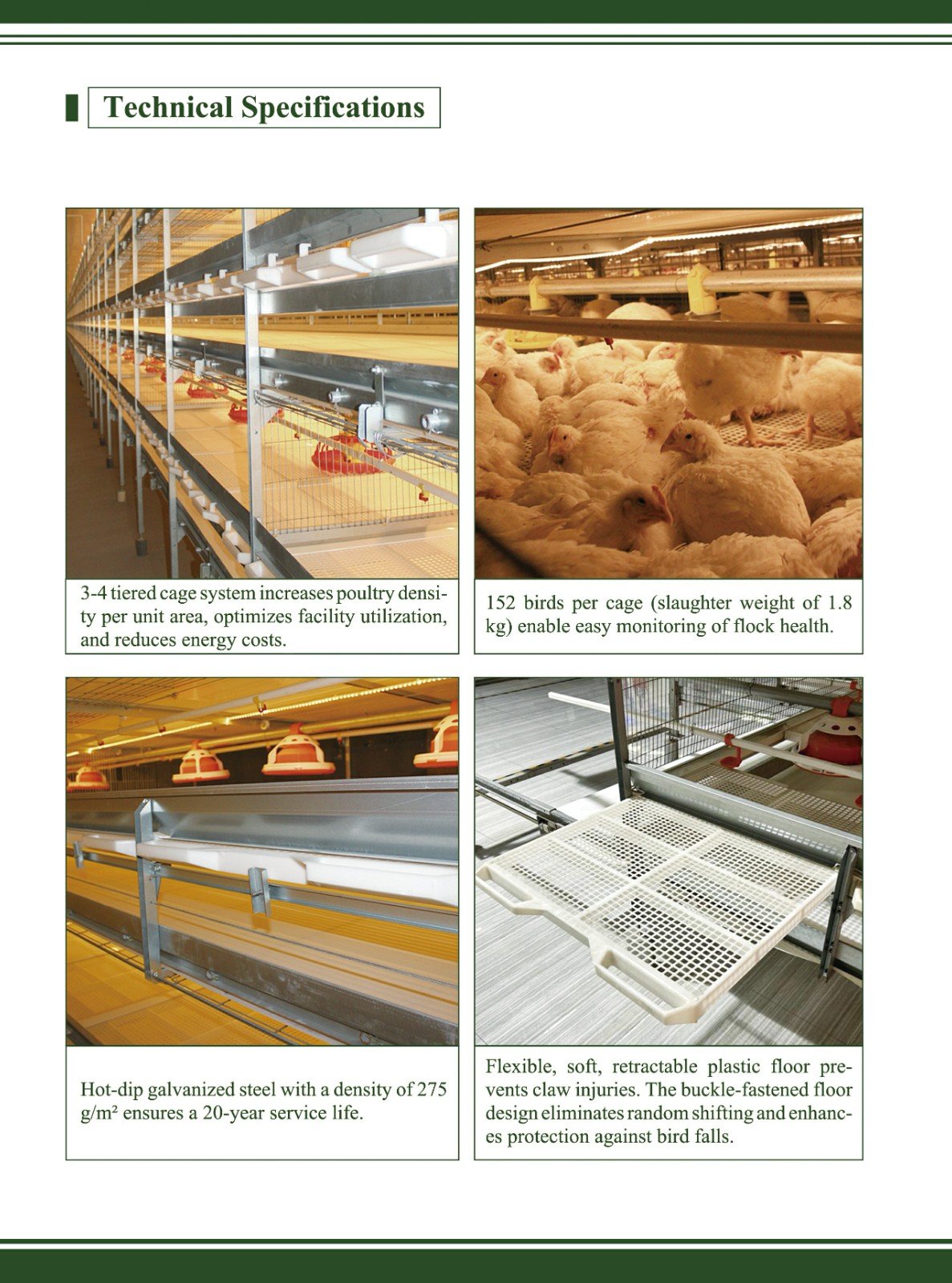

2.The maximum raising density is 50kg/㎡. 110 birds can be put in each tier. For 3 tiers, 330 birds can be put per cage unit.For 4 tiers,440 birds can be put per cage unit. The distance between two adjacent cage frames should be more than 1.2m.

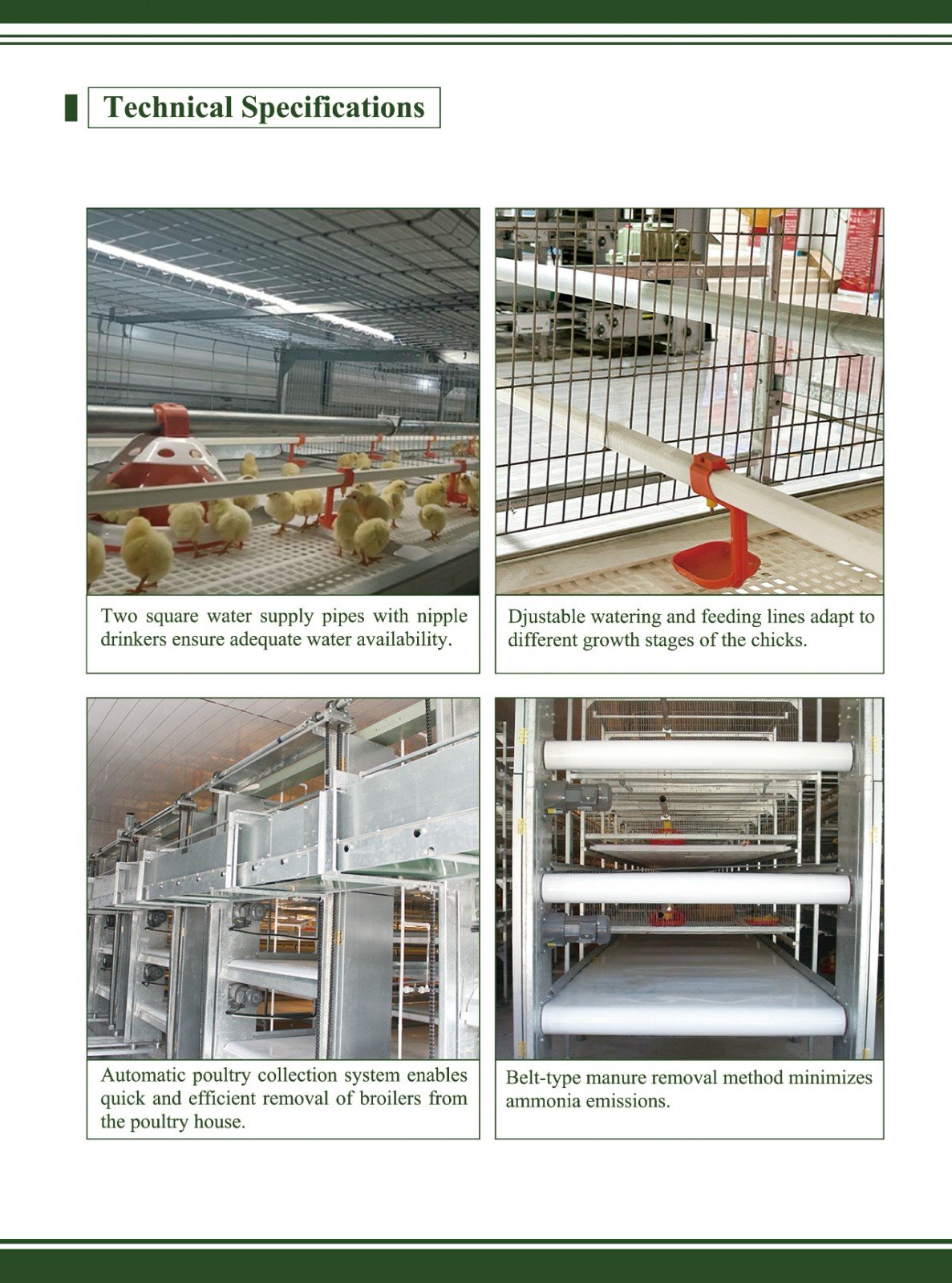

3. For each tier there are two watering lines and one feeding line. There are 2 feeding pans and 12 nipples for drinking.
4. The material of the main equipment is galvanized steel. The galvanization standard for main parts is more than 275g/㎡（accord with internatinal standard GB/T2518-2008).The material has excellent anti-rust and anti-corrosion properties.
